A Series of Sealed Washer       br2.jpg (18572 bytes)

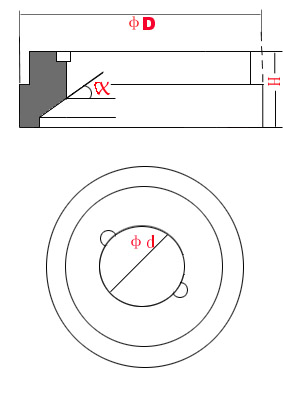

Name Seriesand Model No.
Sealed Washer STH-P1
Materials Applications

B4C ,SiC ,Tungsten Carbide

Sealing

Size Range

Ø D Ø d H a
20-100 10-60 10-30 60

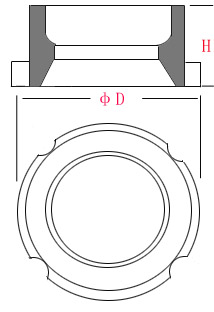

Name Seriesand Model No.
Sealed Washer STH-P2
Materials Applications

B4C ,SiC ,Tungsten Carbide

Many mechanical sealing

Size Range

Ø D Ø d H
30-100 10-160 10-50

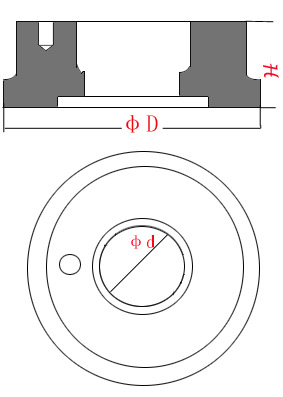

Name Seriesand Model No.
Sealed Washer STH-P3
Materials Applications

B4C ,SiC ,Tungsten Carbide

Many shaft sealing

Size Range

Ø D Ø d H
30-160 10-100 10-30

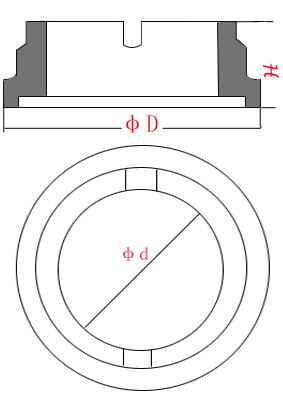

Name Seriesand Model No.
Sealed Washer STH-P4
Materials Applications

B4C ,SiC ,Tungsten Carbide

Many sealing

Size Range

Ø D Ø d H
50-120 20-80 10-30

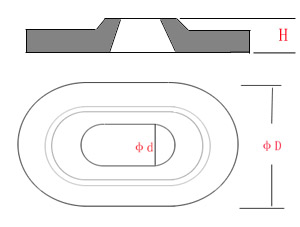

Name Seriesand Model No.
Sealed Washer STH-Y1
Materials Applications

B4C ,SiC ,Tungsten Carbide

Many mechanical sealing

Size Range

Ø D Ø d H
50-100 30-60 10-30



Name Seriesand Model No.
Sealed Washer STH-Y2
Materials Applications

SiC Tungsten Carbide

Many sealing

Size Range

Ø D Ø d H
30-200 10-160 10-30



Name Seriesand Model No.
Sealed Washer STH-Y3
Materials Applications

SiC, Tungsten Carbide

Many shaft sealing

Size Range

Ø D Ø d H
30-160 10-100 10-30



Name Seriesand Model No.
Sealed Washer STH-Y4
Materials Applications

SiC, Tungsten Carbide

Many mechanical sealing

Size Range

Ø D Ø d H
20-60 4-44 5-10



Name Seriesand Model No.
Sealed Washer STH-Y5
Materials Applications

SiC ,Tungsten Carbide

Many  sealing

Size Range

Ø D Ø d H
30-200 10-160 10-30



Name Seriesand Model No.
Sealed Washer STH-Y6
Materials Applications

SiC ,Tungsten Carbide

Many mechanical sealing

Size Range

Ø D Ø d H
30-200 15-160 10-30
This type  is our standard products, if you are interested in it or you have any question, please let us know the details of your requirements and this type number. Or please fill in the form given in our Terms & Conditions.
