Finished Tungsten Carbide Rollers Dimension And Accuracy

acabados rola

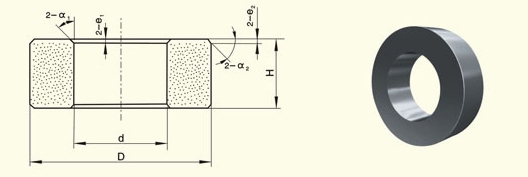

Dimension range of finished rolls

External diameter(D) Inner diameter(d) Heigh(H)
148-500 87-300 20-250

Tolerances allowable for the O.D.,I.D.and height of roll ring

Grade I II III IV
Out diameter(D) ±0.02 ±0.05 ±0.10 ±0.15 Special request
Inner diameter(d) +1T5 +1T6 +1T7 +1T8
Height(H) -0.03 -0.10 -0.20 -0.50

Note:Products can be manufactured based on the drawing supplied by the customer.
