A Series of Sealed Washer

A Series of Sealed Washer

Name	Seriesand Model No.
Sealed Washer	STH-P1
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Sealing
Size Range	Ø D	Ø d	H	a
Size Range	20-100	10-60	10-30	60

Name	Seriesand Model No.
Sealed Washer	STH-P2
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Many mechanical sealing
Size Range	Ø D	Ø d	H
	30-100	10-160	10-50

Name	Seriesand Model No.
Sealed Washer	STH-P3
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Many shaft sealing
Size Range	Ø D	Ø d	H
	30-160	10-100	10-30

Name	Seriesand Model No.
Sealed Washer	STH-P4
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Many sealing
Size Range	Ø D	Ø d	H
	50-120	20-80	10-30

Name	Seriesand Model No.

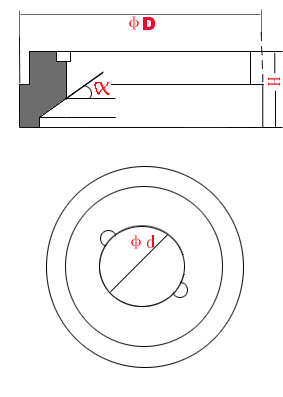

Sealed Washer	STH-Y1
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Many mechanical sealing
Size Range	Ø D	Ø d	H
	50-100	30-60	10-30

Name	Seriesand Model No.

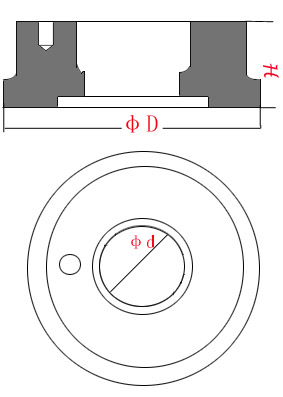

Sealed Washer	STH-Y2
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Many sealing
Size Range	Ø D	Ø d	H
	30-200	10-160	10-30

Name	Seriesand Model No.

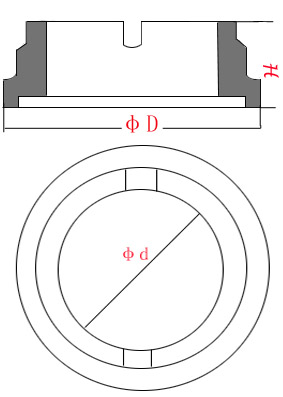

Sealed Washer	STH-Y3
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Many shaft sealing
Size Range	Ø D	Ø d	H
	30-160	10-100	10-30

Name	Seriesand Model No.

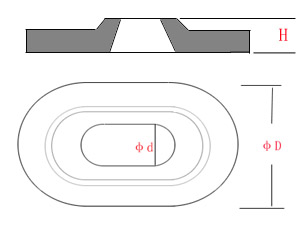

Sealed Washer	STH-Y4
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Many mechanical sealing
Size Range	Ø D	Ø d	H
	20-60	4-44	5-10

Name	Seriesand Model No.
Sealed Washer	STH-Y5
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Many sealing
Size Range	Ø D	Ø d	H
	30-200	10-160	10-30

Name	Seriesand Model No.

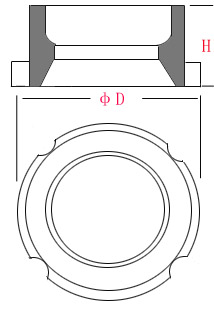

Sealed Washer	STH-Y6
Materials	Applications
B4C ,SiC ,Tungsten Carbide	Many mechanical sealing
Size Range	Ø D	Ø d	H
	30-200	15-160	10-30
