Tungsten Karbid Düse-CT05

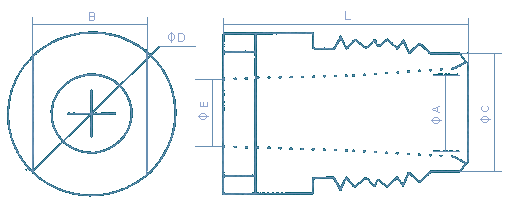

| NOZZLE - CT05 SERIES | ||||||
| T Y P E | D I M E N S I O N | |||||
| E | A | B | C | D | L | |
| CT05 - 71 | 7.1 | 12.7 | 15.9 | 15.9 | 22.2 | 25.4 |
| CT05 - 71- 1 | 7.1 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 79 | 7.9 | 12.7 | 15.9 | 15.9 | 22.2 | 25.4 |
| CT05 - 79 - 1 | 7.9 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 87 | 8.7 | 12.7 | 15.9 | 15.9 | 22.2 | 25.4 |
| CT05 - 87- 1 | 8.7 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 95 | 9.5 | 12.7 | 15.9 | 15.9 | 22.2 | 25.4 |
| CT05 - 95 - 1 | 9.5 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 103 | 10.3 | 12.7 | 15.9 | 15.9 | 22.2 | 25.4 |
| CT05 - 103 - 1 | 10.3 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 111 | 11.1 | 12.7 | 15.9 | 15.9 | 22.2 | 25.4 |
| CT05 - 111 - 1 | 11.1 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 119 | 11.9 | 12.7 | 15.9 | 15.9 | 22.2 | 25.4 |
| CT05 - 119 - 1 | 11.9 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 127 | 12.7 | 15.9 | 15.9 | 15.9 | 22.2 | 25.4 |
| CT05 - 127 - 1 | 12.7 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 135 | 13.5 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 143 | 14.3 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 151 | 15.1 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 159 | 15.9 | 15.9 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 167 | 16.7 | 16.7 | 19.0 | 19.0 | 25.4 | 28.6 |
| CT05 - 175 | 17.5 | 17.5 | 19.0 | 19.0 | 25.4 | 28.6 |
 |
||||||
