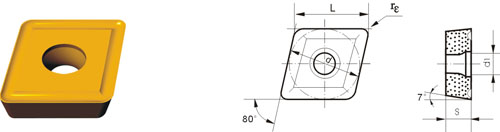

Indexable Inserts Type C-CCMT-V
Type | Dimension(mm) | Grade | ||||||||||||||||||||||||
L | d | S | d1 | rε | Z C 3 0 2 |
Z C 3 1 2 |
Z C 3 0 4 |
Z C 3 1 4 |
Z P 1 O |
Z P 2 0 |
Z P 2 5 |
Z P 3 5 |
Z P 4 0 |
Z M 1 5 |
Z M 3 0 |
Z K 1 O U K |
Z K 2 O |
Z K 2 O U K |
Z K 3 O |
Z K 3 O U K |
||||||
CCMT060202-V0 CCMT060204-V0 CCMT060208-V0 |
6.4 | 6.35 | 2.38 | 2.80 | 0.2 0.4 0.8 |
• • • • • |
• • • • • |
• • • • • |
• • • • • |
|||||||||||||||||
CCMT09T304-V1 | 9.7 | 9.525 | 3.97 | 4.40 | 0.4 | |||||||||||||||||||||
CCMT120404-V2 | 12.9 | 12.70 | 4.76 | 5.50 | 0.4 |
