Tungsten Carbide Nozzle-CT05
NOZZLE - CT05 SERIES |
T Y P E |

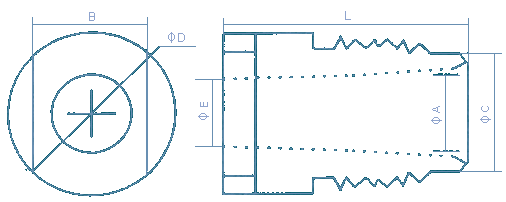

D I M E N S I O N |
E |
A |
B |
C |
D |
L |
CT05 - 71 |
7.1 |
12.7 |
15.9 |
15.9 |
22.2 |
25.4 |
CT05 - 71- 1 |
7.1 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 79 |
7.9 |
12.7 |
15.9 |
15.9 |
22.2 |
25.4 |
CT05 - 79 - 1 |
7.9 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 87 |
8.7 |
12.7 |
15.9 |
15.9 |
22.2 |
25.4 |
CT05 - 87- 1 |
8.7 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 95 |
9.5 |
12.7 |
15.9 |
15.9 |
22.2 |
25.4 |
CT05 - 95 - 1 |
9.5 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 103 |
10.3 |
12.7 |
15.9 |
15.9 |
22.2 |
25.4 |
CT05 - 103 - 1 |
10.3 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 111 |
11.1 |
12.7 |
15.9 |
15.9 |
22.2 |
25.4 |
CT05 - 111 - 1 |
11.1 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 119 |
11.9 |
12.7 |
15.9 |
15.9 |
22.2 |
25.4 |
CT05 - 119 - 1 |
11.9 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 127 |
12.7 |
15.9 |
15.9 |
15.9 |
22.2 |
25.4 |
CT05 - 127 - 1 |
12.7 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 135 |
13.5 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 143 |
14.3 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 151 |
15.1 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 159 |
15.9 |
15.9 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 167 |
16.7 |
16.7 |
19.0 |
19.0 |
25.4 |
28.6 |
CT05 - 175 |
17.5 |
17.5 |
19.0 |
19.0 |
25.4 |
28.6 |
|
