BR Punching Die

Name:BR Punching Die

Usage:For making batteries

Punching-Dies
BR TYPE Punching die blanks for batteries

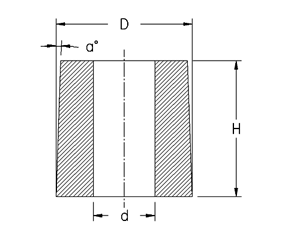

Type Dimension(㎜)
d D H α°
BR902022 9.0 20 22 1°30′
BR942022 9.4 20 22
BR1042120 10.4 21 20
BR1222520 12.2 25 20
BR1253022 12.5 30 22
BR1302520 13.0 25 20
BR1303022 13.0 30 22
BR1883622 18.8 36 22
BR1923622 19.2 36 22
BR1943220 19.4 32 20
BR2204022 22.0 40 22
BR2253820 22.5 38 20
BR2254022 22.5 40 22
BR2354022 23.5 40 22
BR2393820 23.9 38 20
BR2424022 24.2 40 22
BR2884720 28.8 47 20
BR3084720 30.8 47 20
BR3124622 31.2 46 22
BR3184720 31.8 47 20
