BDP Carbide (tungsten steel) Cold heading die
Name:BDP Carbide (tungsten steel) Cold heading die, stamping die, a round mold, Nail Die
Usage:For making standard bolts and nuts
BDP TYPE Heading die

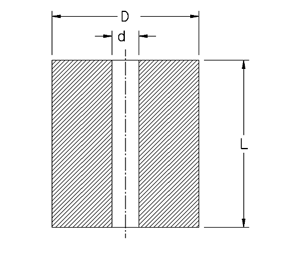

Type | Dimension(㎜) | Range of applications | ||
d | D | L | ||
BDP151020 | 1.5 | 10 | 20.0 | M2 |
BDP151220 | 1.5 | 12 | 20.0 | M2 |
BDP151426 | 1.5 | 14.4 | 26.0 | M2 |
BDP151631 | 1.5 | 16.4 | 31.0 | M2 |
BDP201841 | 2.0 | 18.4 | 41.0 | M2.5 |
BDP202050 | 2.0 | 20 | 50.0 | M2.5 |
BDP202638 | 2.0 | 26 | 38.0 | M2.5 |
BDP211630 | 2.1 | 16 | 30.0 | M3 |
BDP212550 | 2.1 | 25 | 50.0 | M3 |
BDP251630 | 2.5 | 16 | 30.0 | M3 |
BDP282250 | 2.8 | 22 | 50.0 | M4 |
BDP302530 | 3.0 | 25 | 30.0 | M4 |
BDP303030 | 3.0 | 30 | 30.0 | M4 |
BDP303560 | 3.0 | 35 | 60.0 | M4 |
BDP304570 | 3.0 | 45 | 70.0 | M4 |
BDP381420 | 3.8 | 14 | 20.0 | M5 |
BDP383050 | 3.8 | 30 | 50.0 | M5 |
BDP403060 | 4.0 | 30 | 60.0 | M5 |
BDP404560 | 4.0 | 45 | 60.0 | M5 |
BDP462260 | 4.6 | 22 | 60.0 | M6 |
BDP521840 | 5.2 | 18 | 40.0 | M6 |
BDP521860 | 5.2 | 18 | 60.0 | M6 |
BDP542250 | 5.4 | 22 | 50.0 | M6 |
BDP561620 | 5.6 | 16 | 20.0 | M6 |
BDP603060 | 6.0 | 30 | 60.0 | M8 |
BDP6044110 | 6.0 | 44 | 110.0 | M8 |
BDP623232 | 6.2 | 32 | 32.0 | M8 |
BDP642230 | 6.4 | 22 | 30.0 | M8 |
BDP642540 | 6.4 | 25 | 40.0 | M8 |
BDP643025 | 6.4 | 30 | 25.0 | M8 |
BDP643040 | 6.4 | 30 | 40.0 | M8 |
BDP652030 | 6.5 | 20 | 30.0 | M8 |
BDP692240 | 6.9 | 22 | 40.0 | M8 |
BDP692260 | 6.9 | 22 | 60.0 | M8 |
BDP703050 | 7.0 | 30 | 50.0 | M10 |
BDP704020 | 7.0 | 40 | 20.0 | M10 |
BDP704865 | 7.0 | 48 | 65.0 | M10 |
BDP7050100 | 7.0 | 50 | 100.0 | M10 |
BDP723030 | 7.2 | 30 | 30.0 | M10 |
BDP723050 | 7.2 | 30 | 50.0 | M10 |
BDP753136 | 7.5 | 31 | 36.0 | M10 |
BDP803060 | 8.0 | 30 | 60.0 | M10 |
BDP804020 | 8.0 | 40 | 20.0 | M10 |
BDP823040 | 8.2 | 30 | 40.0 | M10 |
BDP823060 | 8.2 | 30 | 60.0 | M10 |
BDP843560 | 8.4 | 35 | 60.0 | M10 |
BDP903060 | 9.0 | 30 | 60.0 | M12 |
BDP903560 | 9.0 | 35 | 60.0 | M12 |
BDP923050 | 9.2 | 30 | 50.0 | M12 |
BDP1003060 | 10.0 | 30 | 60.0 | M12 |
BDP1003540 | 10.0 | 35 | 40.0 | M12 |
BDP1003560 | 10.0 | 35 | 60.0 | M12 |
BDP1004040 | 10.0 | 40 | 40.0 | M12 |
BDP1005025 | 10.0 | 50 | 25.0 | M12 |
BDP1005050 | 10.0 | 50 | 50.0 | M12 |
BDP1144040 | 11.4 | 40 | 40.0 | M12 |
BDP1183530 | 11.8 | 35 | 30.0 | M12 |
BDP1184040 | 11.8 | 40 | 40.0 | M12 |
BDP1202225 | 12.0 | 22 | 25.0 | M12 |
BDP1203060 | 12.0 | 30 | 60.0 | M12 |
BDP1204040 | 12.0 | 40 | 40.0 | M12 |
BDP1204520 | 12.0 | 45 | 20.0 | M12 |
BDP1253560 | 12.5 | 35 | 60.0 | M12 |
BDP1304040 | 13.0 | 40 | 40.0 | M14 |
BDP1383520 | 13.8 | 35 | 20.0 | M16 |
BDP1383545 | 13.8 | 35 | 45.0 | M16 |
BDP1384020 | 13.8 | 40 | 20.0 | M16 |
BDP1384030 | 13.8 | 40 | 30.0 | M16 |
BDP1384045 | 13.8 | 40 | 45.0 | M16 |
BDP1384525 | 13.8 | 45 | 25.0 | M16 |
BDP1404563 | 14.0 | 45 | 63.0 | M18 |
BDP1453548 | 14.5 | 35 | 48.0 | M18 |
BDP1504040 | 15.0 | 40 | 40.0 | M18 |
BDP1504560 | 15.0 | 45 | 60.0 | M18 |
BDP1544520 | 15.4 | 45 | 20.0 | M18 |
BDP1544540 | 15.4 | 45 | 40.0 | M18 |
BDP1604040 | 16.0 | 40 | 40.0 | M18 |
BDP1644040 | 16.4 | 40 | 40.0 | M20 |
BDP1644560 | 16.4 | 45 | 60.0 | M20 |
BDP1704040 | 17.0 | 40 | 40.0 | M20 |
BDP1704520 | 17.0 | 45 | 20.0 | M20 |
BDP1704555 | 17.0 | 45 | 55.0 | M20 |
BDP1704575 | 17.0 | 45 | 75.0 | M20 |
BDP1705030 | 17.0 | 50 | 30.0 | M20 |
BDP1724048 | 17.2 | 40 | 48.0 | M20 |
BDP1754040 | 17.5 | 40 | 40.0 | M20 |
BDP1764560 | 17.6 | 45 | 60.0 | M20 |
BDP1805540 | 18.0 | 55 | 40.0 | M20 |
BDP1824048 | 18.2 | 40 | 48.0 | M20 |
BDP1904560 | 19.0 | 45 | 60.0 | M22 |
BDP2005060 | 20.0 | 50 | 60.0 | M22 |
BDP2104550 | 21.0 | 45 | 50.0 | M22 |
BDP2105020 | 21.0 | 50 | 20.0 | M22 |
BDP2105045 | 21.0 | 50 | 45.0 | M22 |
BDP2185020 | 21.8 | 50 | 20.0 | M22 |
BDP2205020 | 22.0 | 50.2 | 20.0 | M24 |
BDP2205530 | 22.0 | 55 | 30.0 | M24 |
BDP2006040 | 20.0 | 60 | 40.0 | M24 |
BDP2257040 | 22.5 | 70 | 40.0 | M24 |
BDP2305085 | 23.0 | 50 | 85.0 | M25 |
BDP2387030 | 23.8 | 70 | 30.0 | M25 |
BDP2404530 | 24.0 | 35 | 30.0 | M25 |
BDP2405050 | 24.0 | 50 | 50.0 | M27 |
BDP2505030 | 25.0 | 50 | 30.0 | M27 |
BDP2505020 | 25.0 | 50.2 | 20.0 | M27 |
BDP2505530 | 25.0 | 55 | 30.0 | M28 |
BDP2606025 | 26.0 | 60.2 | 25.0 | M30 |
BDP2706527 | 27.0 | 65 | 27.0 | M30 |
BDP2806527 | 28.0 | 65 | 27.0 | M32 |
BDP2857030 | 28.5 | 70 | 30.0 | M34 |
BDP2957540 | 29.5 | 75 | 40.0 | M34 |
BDP3005530 | 30.0 | 55 | 30.0 | M34 |
BDP3006030 | 30.0 | 60 | 30.0 | M34 |
BDP3057550 | 30.5 | 75 | 50.0 | M34 |
BDP3157040 | 31.5 | 70 | 40.0 | M36 |
BDP3306530 | 33.0 | 65 | 30.0 | M38 |
BDP3307035 | 33.0 | 70 | 35.0 | M38 |
BDP3307535 | 33.0 | 75 | 35.0 | M38 |
BDP3758530 | 37.5 | 85 | 30.0 | M42 |
BDP3808040 | 38.0 | 80 | 40.0 | M42 |
BDP3809033 | 38.0 | 90 | 33.0 | M42 |
BDP3808540 | 38.0 | 85 | 40.0 | M42 |
BDP4208040 | 42.0 | 80 | 40.0 | M46 |
BDP4208540 | 42.0 | 85 | 40.0 | M50 |
BDP45010060 | 45.0 | 100 | 60.0 | M50 |
BDP45010080 | 45.0 | 100 | 80.0 | M50 |
BDP4758530 | 47.5 | 85 | 30.0 | M52 |
BDP5009550 | 50.0 | 95 | 50.0 | M54 |
BDP5209040 | 52.0 | 90 | 40.0 | M56 |
BDP60010040 | 60.0 | 100 | 40.0 | M64 |
BDP61510020 | 61.5 | 100 | 20.0 | M66 |
BDP70012040 | 70.0 | 120 | 40.0 | M76 |
BDP80013040 | 80.0 | 130 | 40.0 | M84 |
BDP85014040 | 85.0 | 140 | 40.0 | M90 |
