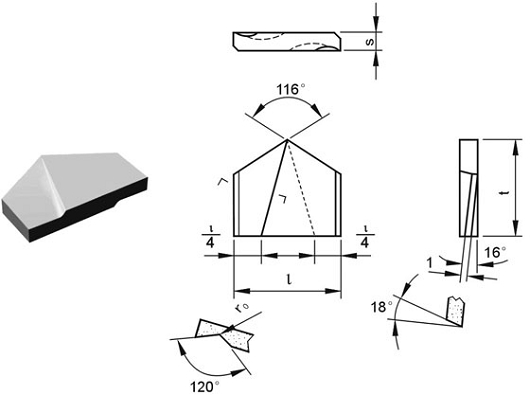

Brasées Conseils-Type E2
Type |
Dimension(mm) |
Poids unitaire environ(g) |
||||||
l |
t |
s |
r0 |
YG6 |
YG8 |
YT5 |
YT14 |
|
E210 |
10.8 |
9.0 |
2.0 |
1.0 |
2.1 |
2.0 |
1.8 |
1.6 |
E211 |
11.8 |
10.0 |
2.5 |
1.0 |
3.3 |
3.3 |
2.6 |
2.4 |
E213 |
13.0 |
11.0 |
2.5 |
1.0 |
3.3 |
3.8 |
3.3 |
3.0 |
E214 |
14.0 |
12.0 |
2.5 |
1.0 |
4.6 |
4.5 |
3.8 |
3.5 |
E215 |
15.0 |
13.0 |
2.5 |
1.0 |
5.2 |
5.1 |
4.4 |
4.0 |
E216 |
16.0 |
14.0 |
3.0 |
1.0 |
7.3 |
7.2 |
6.1 |
5.5 |
E217 |
17.0 |
15.0 |
3.0 |
1.5 |
8.2 |
8.1 |
6.9 |
6.3 |
E218 |
18.0 |
16.0 |
3.0 |
1.5 |
9.1 |
9.0 |
7.8 |
7.1 |
E219 |
19.0 |
17.0 |
3.0 |
1.5 |
10.3 |
10.2 |
8.7 |
7.9 |
E220 |
20.0 |
18.0 |
3.5 |
1.5 |
13.6 |
13.4 |
11.2 |
10.2 |
E221 |
21.0 |
18.0 |
3.5 |
1.5 |
14.3 |
14.1 |
11.7 |
10.7 |
E222 |
22.0 |
18.0 |
3.5 |
1.5 |
14.7 |
14.5 |
11.2 |
11.1 |
E223 |
23.0 |
18.0 |
4.0 |
1.5 |
17.7 |
17.5 |
14.5 |
13.2 |
E224 |
24.0 |
18.0 |
4.0 |
1.5 |
18.4 |
18.2 |
15.0 |
13.7 |
E225 |
25.0 |
22.0 |
4.5 |
2.0 |
26.2 |
25.7 |
19.8 |
18.0 |
E226 |
26.0 |
22.0 |
4.5 |
2.0 |
26.3 |
26.0 |
20.5 |
18.5 |
E227 |
27.5 |
22.0 |
4.5 |
2.0 |
29.5 |
29.2 |
21.5 |
19.5 |
E228 |
28.5 |
22.0 |
4.5 |
2.0 |
30.0 |
29.0 |
22.0 |
20.0 |
E229 |
29.5 |
24.0 |
5.0 |
2.0 |
38.5 |
37.5 |
28.0 |
25.5 |
E230 |
30.5 |
24.0 |
5.0 |
2.0 |
39.0 |
38.0 |
29.0 |
26.5 |
E231 |
31.5 |
24.0 |
5.0 |
2.0 |
40.0 |
39.0 |
29.5 |
27.0 |
E233 |
33.5 |
26.0 |
5.0 |
2.0 |
46.0 |
45.5 |
34.5 |
31.0 |
E236 |
36.5 |
26.0 |
5.0 |
2.0 |
50.0 |
49.0 |
37.0 |
33.5 |
E239 |
39.5 |
26.0 |
5.0 |
2.0 |
53.0 |
52.0 |
39.0 |
35.5 |
E242 |
42.0 |
28.0 |
6.0 |
2.0 |
72.5 |
71.0 |
54.0 |
49.5 |
E244 |
44.0 |
28.0 |
6.0 |
2.0 |
75.0 |
74.0 |
56.0 |
51.0 |
E247 |
47.0 |
28.0 |
6.0 |
2.0 |
78.0 |
77.0 |
59.0 |
54.0 |
E250 |
50.0 |
30.0 |
6.0 |
2.0 |
89.0 |
88.0 |
68.0 |
62.0 |
E252 |
52.0 |
30.0 |
6.0 |
2.0 |
91.0 |
90.0 |
82.5 |
73.2 |
