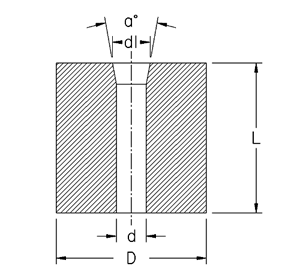

Die ébauches pour la réduction de diamètre de noix
Type |
Dimension(㎜) |
Type |
Dimension(㎜) |
d |
D |
L |
d1 |
α° |
d |
D |
L |
d1 |
α° |
BS2114- |
2.1 |
14 |
15~30 |
2.5 |
20 |
BS8430- |
8.4 |
30 |
25~54 |
9.3 |
20 |
BS2116- |
2.1 |
16 |
15~30 |
2.5 |
BS10030- |
10.0 |
30 |
14~20 |
11.4 |
BS3114- |
3.1 |
14 |
15~30 |
3.5 |
BS10228- |
10.2 |
28 |
25~54 |
11.4 |
BS3116- |
3.1 |
16 |
15~30 |
3.5 |
BS10230- |
10.2 |
30 |
25~54 |
11.4 |
BS3914- |
3.9 |
14 |
15~35 |
4.5 |
BS11940- |
11.9 |
40 |
30~40 |
13.2 |
BS3916- |
3.9 |
16 |
15~35 |
4.5 |
BS12040- |
12.0 |
40 |
10~14 |
13.4 |
BS4516- |
4.5 |
16 |
10~20 |
5.9 |
BS14040- |
14.0 |
40 |
14~20 |
15.4 |
BS4716- |
4.7 |
16 |
15~35 |
5.4 |
BS17545- |
17.5 |
45 |
14~20 |
19.3 |
BS4718- |
4.7 |
18 |
20~35 |
5.4 |
BS19545- |
19.5 |
45 |
20~30 |
21.25 |
BS6520- |
6.5 |
20 |
20~42 |
7.2 |
BS21050- |
21.0 |
50 |
20~30 |
22.75 |
BS6522- |
6.5 |
22 |
10~42 |
7.9 |
BS24060- |
24.0 |
60 |
25~30 |
25.75 |
BS8030- |
8.0 |
30 |
10~20 |
9.4 |
BS26560- |
26.5 |
60 |
25~30 |
28.63 |
12 |
BS8426- |
8.4 |
26 |
25~54 |
9.3 |
BS32070- |
32.0 |
70 |
25~30 |
34.13 |
|
