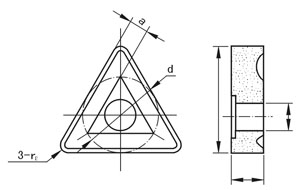

機械的に挿入にクランプ-タイプ 3V
タイプ |
ディメンション(mm) |
約の単位体積重量(g) |
||||||||
d |
s |
r |
a≈ |
d |
H |
YG6 |
YG8 |
YT5 |
YT14 |
|
31005V |
10.0 |
4.5 |
0.5 |
2.4 |
4.2 |
14.5 |
7.3 |
7.2 |
6.4 |
5.7 |
31310V |
13.0 |
5.5 |
1.0 |
3.4 |
5.2 |
18.5 |
15.0 |
14.7 |
13.11 |
11.6 |
31320V |
13.0 |
5.5 |
2.0 |
3.4 |
5.2 |
17.5 |
14.8 |
14.5 |
12.7 |
11.1 |
31605V |
16.0 |
7.0 |
0.5 |
4.4 |
6.2 |
23.5 |
30.0 |
29.6 |
25.6 |
22.8 |
31620V |
16.0 |
7.0 |
2.0 |
4.4 |
6.2 |
22.0 |
28.2 |
27.8 |
25.0 |
22.2 |
31910V |
19.0 |
8.5 |
1.0 |
5.4 |
7.2 |
27.5 |
51.0 |
50.0 |
44.1 |
39.2 |
31920V |
19.0 |
8.5 |
2.0 |
5.4 |
7.2 |
26.5 |
52.0 |
51.0 |
44.7 |
38.8 |
