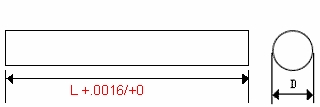

Ground Carbide Rods ISO h6 (Inch)

Carboneto de Tungstênio Rods Carboneto de Tungstênio Rods

Tipo D(mm) L(mm) TOL(inch)
Rod.125-1.5G 1/8 1 1/2 +.015~+.035
Rod.125-2G 1/8 2 +.015~+.045
Rod.1875-1.5G 3/16 1 1/2 +.015~+.035
Rod.1875-2G 3/16 2 +.015~+.045
Rod.1875-2.5G 3/16 2 1/2 +.015~+.050
Rod.1875-3G 3/16 3 +.015~+.055
Rod.25-1.5G 1/4 1 1/2 +.015~+.035
Rod.25-2G 1/4 2 +.015~+.045
Rod.25-2.5G 1/4 2 1/2 +.015~+.050
Rod.25-3G 1/4 3 +.015~+.055
Rod.25-3.25G 1/4 3 1/4 +.015~+.060
Rod.25-3.5G 1/4 3 1/2 +.015~+.060
Rod.25-4G 1/4 4 +.015~+.070
Rod.3125-2G 5/16 2 +.020~+.050
Rod.3125-2.5G 5/16 2 1/2 +.020~+.055
Rod.3125-3G 5/16 3 +.020~+.060
Rod.3125-3.5G 5/16 3 1/2 +.020~+.060
Rod.3125-4G 5/16 4 +.020~+.075
Rod.375-2G 3/8 2 +.025~+.055
Rod.375-2.5G 3/8 2 1/2 +.025~+.060
Rod.375-3G 3/8 3 +.025~+.065
Rod.375-3.25G 3/8 3 1/4 +.025~+.070
Rod.375-3.5G 3/8 3 1/2 +.025~+.070
Rod.375-4G 3/8 4 +.025~+.080
Rod.375-6G 3/8 6 +.025~+.105
Rod.4375-2.5G 7/16 2 1/2 +.030~+.065
Rod.4375-2.75G 7/16 2 3/4 +.030~+.065
Rod.4375-4G 7/16 4 +.030~+.085
Rod.4375-4.5G 7/16 4 1/2 +.030~+.090
Rod.4375-5G 7/16 5 +.030~+.095
Rod.5-2.5G 1/2 2 1/2 +.030~+.065
Rod.5-3G 1/2 3 +.030~+.070
Rod.5-3.125G 1/2 3 1/8 +.030~+.070
Rod.5-4G 1/2 4 +.030~+.085
Rod.5-4.5G 1/2 4 1/2 +.030~+.090
Rod.5-5G 1/2 5 +.030~+.095
Rod.5-6G 1/2 6.0 +.030~+.110
Rod.5625-3G 9/16 3.0 +.035~+.075
Rod.5625-3.5G 9/16 3 1/2 +.035~+.080
Rod.625-3G 5/8 3.0 +.035~+.075
Rod.625-3.5G 5/8 3 1/2 +.040~+.085
Rod.625-3.75G 5/8 3 3/4 +.040~+.090
Rod.625-4.125G 5/8 4 1/8 +.040~+.095
Rod.625-5G 5/8 5 +.040~+.105
Rod.625-8G 5/8 8 +.040~+.145
Rod.75-3G 3/4 3 +.045~+.085
Rod.75-3.5G 3/4 3 1/2 +.045~+.090
Rod.75-4G 3/4 4 +.045~+.100
Rod.75-4.5G 3/4 4 1/2 +.045~+.100
Rod.75-5G 3/4 5 +.045~+.110
Rod.75-6G 3/4 6 +.045~+.125
Rod.75-6.5G 3/4 6 1/2 +.045~+.130
Rod.875-4G 7/8 4 +.055~+.110
Rod.1-3G 1 3 +.060~+.100
Rod.1-3.5G 1 3 1/2 +.060~+.105
Rod.1-4G 1 4 +.060~+.115
Rod.1-5G 1 5 +.060~+.125
Rod.1-6G 1 6 +.060~+.140
Rod.1-7G 1 7 +.060~+.155
Rod1.125-4.5G 1 1/8 4 1/2 +.060~+.120
Rod1.125-6G 1 1/8 6 +.060~+.140
Rod1.125-7.5G 1 1/8 7 1/2 +.060~+.160
