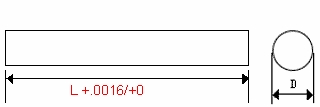

กราวนด์คาร์ไบด์แท่งมาตรฐาน ISO H6 (นิ้ว)

  carboneto de tungstênio Rods carboneto de tungstênio Rods

ชนิด
D(mm)
L(mm)
TOL(inch)
Rod.125-1.5G
1/8
1 1/2
+.015~+.035
Rod.125-2G
1/8
2
+.015~+.045
Rod.1875-1.5G
3/16
1 1/2
+.015~+.035
Rod.1875-2G
3/16
2
+.015~+.045
Rod.1875-2.5G
3/16
2 1/2
+.015~+.050
Rod.1875-3G
3/16
3
+.015~+.055
Rod.25-1.5G
1/4
1 1/2
+.015~+.035
Rod.25-2G
1/4
2
+.015~+.045
Rod.25-2.5G
1/4
2 1/2
+.015~+.050
Rod.25-3G
1/4
3
+.015~+.055
Rod.25-3.25G
1/4
3 1/4
+.015~+.060
Rod.25-3.5G
1/4
3 1/2
+.015~+.060
Rod.25-4G
1/4
4
+.015~+.070
Rod.3125-2G
5/16
2
+.020~+.050
Rod.3125-2.5G
5/16
2 1/2
+.020~+.055
Rod.3125-3G
5/16
3
+.020~+.060
Rod.3125-3.5G
5/16
3 1/2
+.020~+.060
Rod.3125-4G
5/16
4
+.020~+.075
Rod.375-2G
3/8
2
+.025~+.055
Rod.375-2.5G
3/8
2 1/2
+.025~+.060
Rod.375-3G
3/8
3
+.025~+.065
Rod.375-3.25G
3/8
3 1/4
+.025~+.070
Rod.375-3.5G
3/8
3 1/2
+.025~+.070
Rod.375-4G
3/8
4
+.025~+.080
Rod.375-6G
3/8
6
+.025~+.105
Rod.4375-2.5G
7/16
2 1/2
+.030~+.065
Rod.4375-2.75G
7/16
2 3/4
+.030~+.065
Rod.4375-4G
7/16
4
+.030~+.085
Rod.4375-4.5G
7/16
4 1/2
+.030~+.090
Rod.4375-5G
7/16
5
+.030~+.095
Rod.5-2.5G
1/2
2 1/2
+.030~+.065
Rod.5-3G
1/2
3
+.030~+.070
Rod.5-3.125G
1/2
3 1/8
+.030~+.070
Rod.5-4G
1/2
4
+.030~+.085
Rod.5-4.5G
1/2
4 1/2
+.030~+.090
Rod.5-5G
1/2
5
+.030~+.095
Rod.5-6G
1/2
6.0
+.030~+.110
Rod.5625-3G
9/16
3.0
+.035~+.075
Rod.5625-3.5G
9/16
3 1/2
+.035~+.080
Rod.625-3G
5/8
3.0
+.035~+.075
Rod.625-3.5G
5/8
3 1/2
+.040~+.085
Rod.625-3.75G
5/8
3 3/4
+.040~+.090
Rod.625-4.125G
5/8
4 1/8
+.040~+.095
Rod.625-5G
5/8
5
+.040~+.105
Rod.625-8G
5/8
8
+.040~+.145
Rod.75-3G
3/4
3
+.045~+.085
Rod.75-3.5G
3/4
3 1/2
+.045~+.090
Rod.75-4G
3/4
4
+.045~+.100
Rod.75-4.5G
3/4
4 1/2
+.045~+.100
Rod.75-5G
3/4
5
+.045~+.110
Rod.75-6G
3/4
6
+.045~+.125
Rod.75-6.5G
3/4
6 1/2
+.045~+.130
Rod.875-4G
7/8
4
+.055~+.110
Rod.1-3G
1
3
+.060~+.100
Rod.1-3.5G
1
3 1/2
+.060~+.105
Rod.1-4G
1
4
+.060~+.115
Rod.1-5G
1
5
+.060~+.125
Rod.1-6G
1
6
+.060~+.140
Rod.1-7G
1
7
+.060~+.155
Rod1.125-4.5G
1 1/8
4 1/2
+.060~+.120
Rod1.125-6G
1 1/8
6
+.060~+.140
Rod1.125-7.5G
1 1/8
7 1/2
+.060~+.160
