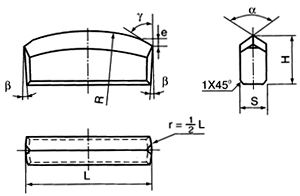

Drill Bits -Type K0
Type K0
mm
| Type | Dimensión | Nota | |||||||
| L | H | S | R | α | β | γ | e | ||
| K0-95007 | 20.0 | 15.0 | 7.0 | 180.0 | 110o | 3o | / | / | G95207 |
| K0-95008 | 22.0 | / | / | G95208 | |||||
| K0-97004 | 24.0 | 13.0 | / | / | G97227 | ||||
| K026 | 36.0 | 18.0 | 8.0 | / | / | / | |||
| K0-97005 | 28.0 | 13.0 | 7.5 | / | / | G97228 | |||
| K028 | 18.0 | 8.0 | / | / | / | ||||
| K0-99013 | 30.0 | 13.0 | 7.0 | / | / | / | |||
| K030 | 18.0 | 8.0 | / | / | / | ||||
| K0-99501 | 30.2 | 12.2 | / | / | K030-12 | ||||
| K0-98009 | 32.0 | 12.0 | / | / | DK-9807 | ||||
| K032 | 18.0 | / | / | / | |||||
| K0-98014 | 33.0 | 16.0 | 9.2 | / | / | DK-9825 | |||
| K0-99011 | 34.0 | 12.0 | 8.0 | 40o | 1.5 | / | |||
| K034 | 18.0 | 10.0 | / | / | / | ||||
| K0-99015 | 36.0 | 13.5 | 7.5 | / | / | / | |||
| K0-98005 | 36.0 | 14.5 | 9.0 | / | / | G98132 | |||
| K036 | 18.0 | 10.0 | / | / | / | ||||
| K0-91008 | 38.0 | 11.0 | / | / | G91999 | ||||
| K0-98007 | 14.5 | 9.0 | / | / | G98131 | ||||
| K0-93002 | 15.0 | 8.0 | / | / | G93194 | ||||
| K038 | 39.0 | 18.0 | 10.0 | / | / | the same as G89122 | |||
| K0-91501 | 40.0 | 17.3 | / | / | W91023 | ||||
| K0-99030 | 13.5 | 9.0 | / | / | / | ||||
| K040B | 15.0 | 10.0 | / | / | / | ||||
| K0-96007 | 17.0 | 9.5 | / | / | G96063 | ||||
| K040 | 18.0 | 10.0 | / | / | / | ||||
| K0-91006 | 41.0 | 12.0 | / | / | G91541 | ||||
| K0-96009 | 42.0 | 12.5 | 10.0 | / | / | G96085 | |||
| K0-96013 | 13.5 | 9.2 | / | / | G96127 | ||||
| K0-94002 | 43.0 | 15.0 | 9.0 | / | / | G94546 | |||
| K015B | 10.0 | / | / | / | |||||
| K044 | 44.0 | 18.0 | / | / | / | ||||
| K0-93006 | 46.0 | 15.0 | / | / | G93906 | ||||
| K046 | 18.0 | / | / | / | |||||
| K0-76001 | 20.0 | 12.0 | / | / | G6005-B | ||||
| K0-76003 | / | / | G6105 | ||||||
| K049 | 49.0 | 18.0 | 10.0 | / | / | / | |||
| K051 | 51.0 | / | / | G55185 | |||||
| K0-76002 | 60.0 | 22.0 | / | / | G6104 | ||||
