Drill Bits -Type K20
Type K20
mm

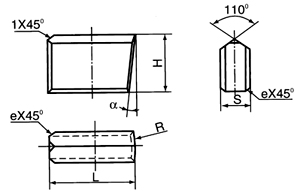

Type | Dimensión | Nota | |||||
L | H | S | R | α | e | ||
K20-91002 | 10.0 | 13.0 | 8.0 | 20.0 | 2o30' | 1.0 | G91727 |
K2012 | 12.0 | 12.0 | 16.0 | 3o | / | ||
K2013 | 13.0 | / | |||||
K2014 | 14.0 | 17.0 | / | ||||
K2015 | 15.0 | 20.0 | / | ||||
K2016 | 16.0 | 14.0 | G96090 | ||||
K20-96501 | 16.5 | 22.0 | 13.0 | 26.0 | W96059 | ||
K2017 | 17.0 | 14.0 | 8.0 | 20.0 | / | ||
K2019 | 19.0 | 22.0 | / | ||||
K2020 | 20.0 | 16.0 | 10.0 | 23.0 | 1.5 | / | |
K2022 | 22.0 | 25.0 | / | ||||
K20-96502 | 23.0 | 23.0 | 13.0 | 32.5 | 1.0 | W96060 | |
K2024 | 24.0 | 16.0 | 10.0 | 27.0 | 1.5 | / | |
K2026 | 26.0 | 29.0 | / | ||||
K2028 | 28.0 | 31.0 | / | ||||
K2030 | 30.0 | 12.0 | 35.0 | / | |||
K2032B | 32.0 | 16.0 | 10.0 | 31.0 | 1.0 | G90689 | |
K2032 | 18.0 | 12.0 | 38.0 | 2.0 | / | ||
K2035 | 35.0 | 20.0 | 15.0 | 45.0 | / | ||
K2041 | 41.0 | 22.0 | 17.0 | 51.0 | / | ||
K2045 | 45.0 | 25.0 | 19.0 | 57.5 | / | ||
K2053 | 53.0 | 20.0 | 59.0 | / |
