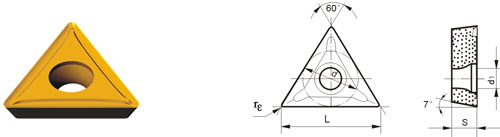

Indexable Inserta Type T-TCMT-ZF3
Type | Dimensión(mm) | Grado | |||||||||||||||||||||
L | d | S | d1 | rε | Z C 3 0 2 |
Z C 3 1 2 |
Z C 3 0 4 |
Z C 3 1 4 |
Z P 1 0 |
Z P 2 0 |
Z P 2 5 |
Z P 3 5 |
Z P 4 0 |
Z M 1 5 |
Z M 3 0 |
Z K 1 O U K |
Z K 2 O |
Z K 2 O U K |
Z K 3 O |
Z K 3 O U K |
|||
TCMT16T308-ZF3 TCMT16T312-ZF3 |
16.5 | 9.525 | 3.97 | 4.40 | 0.8 1.2 |
. . |
. . |
. . |
. . |
. . |
|||||||||||||
TCMT220412-ZF3 | 22.0 | 12.70 | 4.76 | 5.50 | 1.2 |
