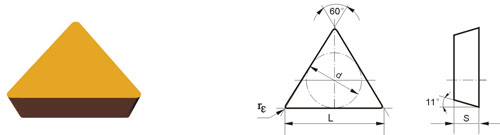

Indexable Inserta Type T-TPUN
Type | Dimensión(mm) | Grado | ||||||||||||||||||||
L | d | S | rε | Z C 3 0 2 |
Z C 3 1 2 |
Z C 3 0 4 |
Z C 3 1 4 |
Z P 1 0 |
Z P 2 0 |
Z P 2 5 |
Z P 3 5 |
Z P 4 0 |
Z M 1 5 |
Z M 3 0 |
Z K 1 O U K |
Z K 2 O |
Z K 2 O U K |
Z K 3 O |
Z K 3 O U K |
|||
TPUN090204 TPUN090308 |
9.60 | 5.56 | 2.38 3.18 |
0.4 0.8 |
. . . . . . |
. . . . . . |
. . . . . . |
. . . . . . |
||||||||||||||
TPUN110304 TPUN110308 |
11.0 | 6.35 | 3.18 | 0.4 0.8 |
||||||||||||||||||
TPUN160304 TPUN160308 TPUN160312 |
16.5 | 9.525 | 3.18 | 0.4 0.8 1.2 |
||||||||||||||||||
TPUN160408 | 16.5 | 9.525 | 4.76 | 0.8 | ||||||||||||||||||
TPUN220404 TPUN220408 TPUN220412 TPUN220416 |
22.0 | 12.70 | 4.76 | 0.4 0.8 1.2 1.6 |
