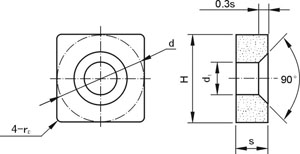

Mecánicamente Sujetos al Suelo Inserta-Type 4N
| Type | Dimensión(mm) | Aprox Unidad de Peso(g) | |||||||
| d | s | r | d1 | H | YG6 | YG8 | YT5 | YT14 | |
| 41005N | 10.0 | 3.5 | 0.5 | 4.2 | 10.0 | 4.3 | 4.2 | 3.7 | 3.3 |
| 41305N | 13.0 | 4.5 | 0.5 | 5.2 | 13.0 | 9.9 | 9.7 | 8.3 | 7.3 |
| 41605N | 16.0 | 5.5 | 0.5 | 6.2 | 16.0 | 18.2 | 17.9 | 15.7 | 13.9 |
| 41620N | 16.0 | 5.5 | 2.0 | 6.2 | 16.0 | 17.8 | 17.4 | 15.4 | 13.7 |
| 41910N | 19.0 | 7.0 | 1.0 | 7.2 | 19.0 | 32.5 | 32.0 | 28.0 | 24.8 |
