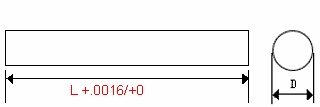

タイプ |
D(mm) |
L(mm) |
TOL(inch) |
Rod.125-1.5G |
1/8 |
1 1/2 |
+.015~+.035 |
Rod.125-2G |
1/8 |
2 |
+.015~+.045 |
Rod.1875-1.5G |
3/16 |
1 1/2 |
+.015~+.035 |
Rod.1875-2G |
3/16 |
2 |
+.015~+.045 |
Rod.1875-2.5G |
3/16 |
2 1/2 |
+.015~+.050 |
Rod.1875-3G |
3/16 |
3 |
+.015~+.055 |
Rod.25-1.5G |
1/4 |
1 1/2 |
+.015~+.035 |
Rod.25-2G |
1/4 |
2 |
+.015~+.045 |
Rod.25-2.5G |
1/4 |
2 1/2 |
+.015~+.050 |
Rod.25-3G |
1/4 |
3 |
+.015~+.055 |
Rod.25-3.25G |
1/4 |
3 1/4 |
+.015~+.060 |
Rod.25-3.5G |
1/4 |
3 1/2 |
+.015~+.060 |
Rod.25-4G |
1/4 |
4 |
+.015~+.070 |
Rod.3125-2G |
5/16 |
2 |
+.020~+.050 |
Rod.3125-2.5G |
5/16 |
2 1/2 |
+.020~+.055 |
Rod.3125-3G |
5/16 |
3 |
+.020~+.060 |
Rod.3125-3.5G |
5/16 |
3 1/2 |
+.020~+.060 |
Rod.3125-4G |
5/16 |
4 |
+.020~+.075 |
Rod.375-2G |
3/8 |
2 |
+.025~+.055 |
Rod.375-2.5G |
3/8 |
2 1/2 |
+.025~+.060 |
Rod.375-3G |
3/8 |
3 |
+.025~+.065 |
Rod.375-3.25G |
3/8 |
3 1/4 |
+.025~+.070 |
Rod.375-3.5G |
3/8 |
3 1/2 |
+.025~+.070 |
Rod.375-4G |
3/8 |
4 |
+.025~+.080 |
Rod.375-6G |
3/8 |
6 |
+.025~+.105 |
Rod.4375-2.5G |
7/16 |
2 1/2 |
+.030~+.065 |
Rod.4375-2.75G |
7/16 |
2 3/4 |
+.030~+.065 |
Rod.4375-4G |
7/16 |
4 |
+.030~+.085 |
Rod.4375-4.5G |
7/16 |
4 1/2 |
+.030~+.090 |
Rod.4375-5G |
7/16 |
5 |
+.030~+.095 |
Rod.5-2.5G |
1/2 |
2 1/2 |
+.030~+.065 |
Rod.5-3G |
1/2 |
3 |
+.030~+.070 |
Rod.5-3.125G |
1/2 |
3 1/8 |
+.030~+.070 |
Rod.5-4G |
1/2 |
4 |
+.030~+.085 |
Rod.5-4.5G |
1/2 |
4 1/2 |
+.030~+.090 |
Rod.5-5G |
1/2 |
5 |
+.030~+.095 |
Rod.5-6G |
1/2 |
6.0 |
+.030~+.110 |
Rod.5625-3G |
9/16 |
3.0 |
+.035~+.075 |
Rod.5625-3.5G |
9/16 |
3 1/2 |
+.035~+.080 |
Rod.625-3G |
5/8 |
3.0 |
+.035~+.075 |
Rod.625-3.5G |
5/8 |
3 1/2 |
+.040~+.085 |
Rod.625-3.75G |
5/8 |
3 3/4 |
+.040~+.090 |
Rod.625-4.125G |
5/8 |
4 1/8 |
+.040~+.095 |
Rod.625-5G |
5/8 |
5 |
+.040~+.105 |
Rod.625-8G |
5/8 |
8 |
+.040~+.145 |
Rod.75-3G |
3/4 |
3 |
+.045~+.085 |
Rod.75-3.5G |
3/4 |
3 1/2 |
+.045~+.090 |
Rod.75-4G |
3/4 |
4 |
+.045~+.100 |
Rod.75-4.5G |
3/4 |
4 1/2 |
+.045~+.100 |
Rod.75-5G |
3/4 |
5 |
+.045~+.110 |
Rod.75-6G |
3/4 |
6 |
+.045~+.125 |
Rod.75-6.5G |
3/4 |
6 1/2 |
+.045~+.130 |
Rod.875-4G |
7/8 |
4 |
+.055~+.110 |
Rod.1-3G |
1 |
3 |
+.060~+.100 |
Rod.1-3.5G |
1 |
3 1/2 |
+.060~+.105 |
Rod.1-4G |
1 |
4 |
+.060~+.115 |
Rod.1-5G |
1 |
5 |
+.060~+.125 |
Rod.1-6G |
1 |
6 |
+.060~+.140 |
Rod.1-7G |
1 |
7 |
+.060~+.155 |
Rod1.125-4.5G |
1 1/8 |
4 1/2 |
+.060~+.120 |
Rod1.125-6G |
1 1/8 |
6 |
+.060~+.140 |
Rod1.125-7.5G |
1 1/8 |
7 1/2 |
+.060~+.160 |
|
