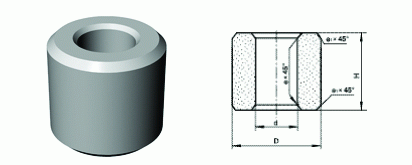

Tungsten Carbide Dies type 31
mm
Type | Dimensions | ||
D | H | d | |
31- | 14.00~18.00 | 25.00 | 7.00~8.00 |
19.00~27.00 | 30.00 | 10.00~12.00 | |
28.00~42.00 | 28.00~42.00 | 16.00~20.00 | |
43.00~44.00 | 40.00 | 22.00 | |
45.00~47.00 | 45.00 | 26.40 |
