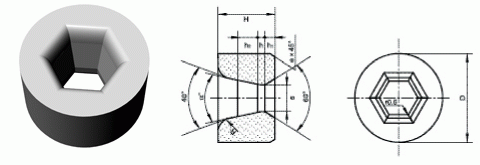

Tungsten Carbide Dies type 60

Carboneto de tungstênio Dies

mm

Type Dimensions
D H s R h
60- 30.00~35.00 21.00 2.50~10.60 3.00 1.50~3.00
40.00~45.00 25.00 11.50~18.50 4.00 3.50~4.00
55.00 28.00 19.50~23.50 5.00 5.00
65.00 30.00 24.00~28.50 6.00
75.00~90.00 35.00 29.50~49.00 6.00 7.00
100.00 40.00 52.00~57.00 8.00
120.00 42.00 59.50~74.00
