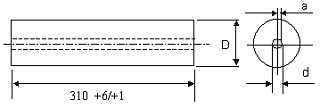

Unground Carbide Rods 1 Coolant hole–length 310mm
Type | ØD(mm) | Tol. | Ød(mm) | Tol. |
a |
RRM 0420-3100U1S | 4.0 | +0.30~+0.50 | 0.80 | ±0.10 | 0.10 |
RRM 0520-3100U1S | 5.0 | +0.30~+0.50 | 0.80 | ±0.10 | 0.13 |
RRM 0630-3100U1S | 6.0 | +0.30~+0.50 | 1.00 | ±0.15 | 0.15 |
RRM 0730-3100U1S | 7.0 | +0.30~+0.60 | 1.00 | ±0.15 | 0.15 |
RRM 0830-3100U1S | 8.0 | +0.30~+0.60 | 1.00 | ±0.15 | 0.15 |
RRM 0930-3100U1S | 9.0 | +0.30~+0.60 | 1.40 | ±0.15 | 0.20 |
RRM 1030-3100U1S | 10.0 | +0.30~+0.60 | 1.40 | ±0.15 | 0.20 |
RRM 1130-3100U1S | 11.0 | +0.30~+0.60 | 1.40 | ±0.15 | 0.28 |
RRM 1230-3100U1S | 12.0 | +0.30~+0.60 | 1.75 | ±0.15 | 0.30 |
RRM 1330-3100U1S | 13.0 | +0.30~+0.70 | 1.75 | ±0.15 | 0.34 |
RRM 1430-3100U1S | 14.0 | +0.30~+0.70 | 1.75 | ±0.15 | 0.37 |
RRM 1530-3100U1S | 15.0 | +0.30~+0.70 | 2.00 | ±0.20 | 0.40 |
RRM 1630-3100U1S | 16.0 | +0.30~+0.70 | 2.00 | ±0.20 | 0.40 |
RRM 1730-3100U1S | 17.0 | +0.30~+0.80 | 2.00 | ±0.20 | 0.47 |
RRM 1830-3100U1S | 18.0 | +0.30~+0.80 | 2.00 | ±0.20 | 0.50 |
RRM 1930-3100U1S | 19.0 | +0.30~+0.80 | 2.00 | ±0.20 | 0.50 |
RRM 2040-3100U1S | 20.0 | +0.30~+0.80 | 2.50 | ±0.25 | 0.50 |
RRM 2140-3100U1S | 21.0 | +0.30~+0.80 | 2.50 | ±0.25 | 0.50 |
RRM 2240-3100U1S | 22.0 | +0.30~+0.80 | 2.50 | ±0.25 | 0.50 |
RRM 2340-3100U1S | 23.0 | +0.30~+0.80 | 2.50 | ±0.25 | 0.50 |
RRM 2440-3100U1S | 24.0 | +0.30~+0.80 | 3.00 | ±0.25 | 0.50 |
RRM 2540-3100U1S | 25.0 | +0.30~+0.80 | 3.00 | ±0.25 | 0.50 |
RRM 2640-3100U1S | 26.0 | +0.30~+0.80 | 3.00 | ±0.25 | 0.50 |
RRM 2840-3100U1S | 28.0 | +0.30~+0.80 | 3.00 | ±0.25 | 0.50 |
RRM 3040-3100U1S | 30.0 | +0.30~+0.80 | 3.00 | ±0.25 | 0.50 |
RRM 3240-3100U1S | 32.0 | +0.30~+0.80 | 3.00 | ±0.25 | 0.50 |
RRM 3440-3100U1S | 34.0 | +0.30~+0.80 | 3.00 | ±0.25 | 0.50 |
