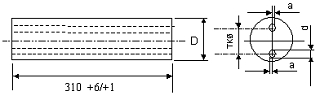

Unground Carbide Rods 2 Coolant hole–length 310mm
Type | ØD(mm) | Tol. | Ød(mm) | Tol. | TKØ(mm) | Tol. | a |
RRM 0420-3100U2S | 4.0 | +0.30~+0.50 | 0.80 | ±0.10 | 1.8 | -0.15 | 0.10 |
RRM 0520-3100U2S | 5.0 | +0.30~+0.50 | 0.80 | ±0.10 | 2.0 | -0.15 | 0.13 |
RRM 0630-3100U2S | 6.0 | +0.30~+0.50 | 1.00 | ±0.15 | 3.0 | -0.20 | 0.15 |
RRM 0730-3100U2S | 7.0 | +0.30~+0.60 | 1.00 | ±0.15 | 3.5 | -0.20 | 0.15 |
RRM 0830-3100U2S | 8.0 | +0.30~+0.60 | 1.00 | ±0.15 | 4.0 | -0.30 | 0.15 |
RRM 0930-3100U2S | 9.0 | +0.30~+0.60 | 1.40 | ±0.15 | 4.0 | -0.30 | 0.20 |
RRM 1030-3100U2S | 10.0 | +0.30~+0.60 | 1.40 | ±0.15 | 5.0 | -0.30 | 0.20 |
RRM 1130-3100U2S | 11.0 | +0.30~+0.60 | 1.40 | ±0.15 | 5.0 | -0.30 | 0.28 |
RRM 1230-3100U2S | 12.0 | +0.30~+0.60 | 1.75 | ±0.15 | 6.0 | -0.30 | 0.30 |
RRM 1330-3100U2S | 13.0 | +0.30~+0.70 | 1.75 | ±0.15 | 6.0 | -0.30 | 0.34 |
RRM 1430-3100U2S | 14.0 | +0.30~+0.70 | 1.75 | ±0.15 | 7.0 | -0.30 | 0.37 |
RRM 1530-3100U2S | 15.0 | +0.30~+0.70 | 2.00 | ±0.20 | 7.0 | -0.30 | 0.40 |
RRM 1630-3100U2S | 16.0 | +0.30~+0.70 | 2.00 | ±0.20 | 8.0 | -0.30 | 0.40 |
RRM 1730-3100U2S | 17.0 | +0.30~+0.80 | 2.00 | ±0.20 | 8.0 | -0.30 | 0.47 |
RRM 1830-3100U2S | 18.0 | +0.30~+0.80 | 2.00 | ±0.20 | 9.0 | -0.30 | 0.50 |
RRM 1930-3100U2S | 19.0 | +0.30~+0.80 | 2.00 | ±0.20 | 9.0 | -0.30 | 0.50 |
RRM 2040-3100U2S | 20.0 | +0.30~+0.80 | 2.50 | ±0.25 | 10.0 | -0.40 | 0.50 |
RRM 2140-3100U2S | 21.0 | +0.30~+0.80 | 2.50 | ±0.25 | 10.0 | -0.40 | 0.50 |
RRM 2240-3100U2S | 22.0 | +0.30~+0.80 | 2.50 | ±0.25 | 11.0 | -0.40 | 0.50 |
RRM 2340-3100U2S | 23.0 | +0.30~+0.80 | 2.50 | ±0.25 | 11.0 | -0.40 | 0.50 |
RRM 2440-3100U2S | 24.0 | +0.30~+0.80 | 3.00 | ±0.25 | 120 | -0.50 | 0.50 |
RRM 2540-3100U2S | 25.0 | +0.30~+0.80 | 3.00 | ±0.25 | 12.0 | -0.50 | 0.50 |
RRM 2640-3100U2S | 26.0 | +0.30~+0.80 | 3.00 | ±0.25 | 13.0 | -0.50 | 0.50 |
RRM 2840-3100U2S | 28.0 | +0.30~+0.80 | 3.00 | ±0.25 | 14.0 | -0.50 | 0.50 |
RRM 3040-3100U2S | 30.0 | +0.30~+0.80 | 3.00 | ±0.25 | 14.0 | -0.50 | 0.50 |
RRM 3240-3100U2S | 32.0 | +0.30~+0.80 | 3.00 | ±0.25 | 14.0 | -0.50 | 0.50 |
RRM 3440-3100U2S | 34.0 | +0.30~+0.80 | 3.00 | ±0.25 | 14.0 | -0.50 | 0.50 |
