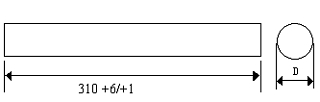

Tungsten Carbide Rods-Unground carbide rods-length 310mm
Type | D(mm) | Tol(mm) |
RRM 1000-3100U | 10.0 | +0.30~+0.60 |
RRM 1050-3100U | 10.5 | +0.30~+0.60 |
RRM1100-3100U | 11.0 | +0.30~+0.60 |
RRM 1150-3100U | 11.5 | +0.30~+0.60 |
RRM 1200-3100U | 12.0 | +0.30~+0.60 |
RRM 1250-3100U | 12.5 | +0.30~+0.70 |
RRM 1300-3000U | 13.0 | +0.30~+0.70 |
RRM 1350-3100U | 13.5 | +0.30~+0.70 |
RRM 1400-3100U | 14.0 | +0.30~+0.70 |
RRM 1450-3100U | 14.5 | +0.30~+0.70 |
RRM 1500-3100U | 15.0 | +0.30~+0.70 |
RRM 1550-3100U | 15.5 | +0.30~+0.70 |
RRM 1600-3100U | 16.0 | +0.30~+0.70 |
RRM 1650-3100U | 16.5 | +0.30~+0.80 |
RRM 1700-3100U | 17.0 | +0.30~+0.80 |
RRM 1750-3100U | 17.5 | +0.30~+0.80 |
RRM 1800-3100U | 18.0 | +0.30~+0.80 |
RRM 1850-3100U | 18.5 | +0.30~+0.80 |
RRM 1900-3100U | 19.0 | +0.30~+0.80 |
RRM 1950-3100U | 19.5 | +0.30~+0.80 |
RRM 2000-3100U | 20.0 | +0.30~+0.80 |
RRM 2050-3100U | 20.5 | +0.30~+0.80 |
RRM 2100-3100U | 21.0 | +0.30~+0.80 |
RRM 2150-3100U | 21.5 | +0.30~+0.80 |
RRM 2200-3100U | 22.0 | +0.30~+0.80 |
RRM 2250-3100U | 22.5 | +0.30~+0.80 |
RRM 2300-3100U | 23.0 | +0.30~+0.80 |
RRM 2350-3100U | 23.5 | +0.30~+0.80 |
RRM 2400-3100U | 24.0 | +0.30~+0.80 |
RRM 2450-3100U | 24.5 | +0.30~+0.80 |
RRM 2500-3100U | 25.0 | +0.30~+0.80 |
RRM 2550-3100U | 25.5 | +0.30~+0.80 |
RRM 2600-3100U | 26.0 | +0.30~+0.80 |
RRM 2650-3100U | 26.5 | +0.30~+0.80 |
RRM 2700-3100U | 27.0 | +0.30~+0.80 |
RRM 2750-3100U | 27.5 | +0.30~+0.80 |
RRM 2800-3100U | 28.0 | +0.30~+0.80 |
RRM 2850-3100U | 28.5 | +0.30~+0.80 |
RRM 2900-3100U | 29.0 | +0.30~+0.80 |
RRM 2950-3100U | 29.5 | +0.30~+0.80 |
RRM 0300-3100U | 3.0 | +0.30~+0.50 |
RRM 0600-3100U | 3.5 | +0.30~+0.50 |
RRM 3000-3100U | 30.0 | +0.30~+0.80 |
RRM 3050-3100U | 30.5 | +0.30~+0.80 |
RRM 3100-3100U | 31.0 | +0.30~+0.80 |
RRM 3150-3100U | 31.5 | +0.30~+0.80 |
RRM 3200-3100U | 32.0 | +0.30~+0.80 |
RRM 0400-3100U | 4.0 | +0.30~+0.50 |
RRM 0650-3100U | 6.5 | +0.30~+0.60 |
RRM 0700-3100U | 7.0 | +0.30~+0.60 |
RRM 0750-3100U | 7.5 | +0.30~+0.60 |
RRM 0800-3100U | 8.0 | +0.30~+0.60 |
RRM 0850-3100U | 8.5 | +0.30~+0.60 |
RRM 0900-3000U | 9.0 | +0.30~+0.60 |
RRM 0950-3100U | 9.5 | +0.30~+0.60 |
