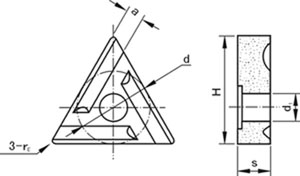

Sont Fixés Mécaniquement Inserts-Type 3A
Type |
Dimension(mm) |
Poids unitaire environ(g) |
||||||||
d |
s |
r |
a≈ |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
|
31005A |
10.0 |
4.5 |
0.5 |
2.4 |
4.2 |
14.5 |
7.5 |
7.4 |
6.4 |
5.7 |
31005AL |
||||||||||
31305A |
13.0 |
5.5 |
0.5 |
3.4 |
5.2 |
19.0 |
15.7 |
15.5 |
13.4 |
11.9 |
31305AL |
||||||||||
31605A |
16.0 |
7.0 |
0.5 |
4.4 |
6.2 |
23.5 |
30.0 |
29.7 |
26.1 |
23.2 |
31605AL |
||||||||||
31905A |
19.0 |
8.5 |
0.5 |
5.4 |
7.2 |
28.0 |
52.0 |
51.0 |
44.6 |
39.6 |
31905AL |
