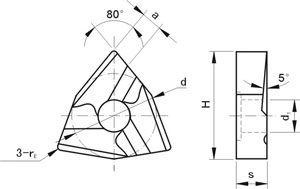

Sont Fixés Mécaniquement Inserts-Type T3F
Type |
Dimension(mm) |
Poids unitaire environ(g) |
||||||||
d |
s |
r |
a≈ |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
|
T31005F |
10.0 |
3.5 |
0.5 |
2.4 |
4.2 |
12.6 |
4.2 |
4.2 |
3.7 |
3.3 |
T31005FL |
||||||||||
T31305F |
13.0 |
4.5 |
0.5 |
3.4 |
5.2 |
16.4 |
9.2 |
9.1 |
7.9 |
7.0 |
T31305FL |
||||||||||
T31605F |
16.0 |
5.5 |
0.5 |
4.4 |
6.2 |
20.3 |
17.2 |
17.0 |
14.6 |
13.0 |
T31605FL |
||||||||||
T31905F |
19.0 |
7.0 |
0.5 |
5.4 |
7.2 |
24.2 |
30.8 |
30.5 |
26.8 |
23.8 |
T31905FL |
