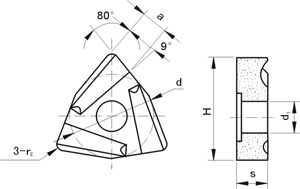

Sont Fixés Mécaniquement Inserts-Type T3Y
 |
 |
Type |
Dimension(mm) |
Poids unitaire environ(g) |
||||||||
d |
s |
r |
a≈ |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
|
T31310Y |
13.0 |
4.5 |
1.0 |
5.0 |
5.2 |
16.1 |
9.7 |
9.5 |
7.9 |
7.1 |
T31310YL |
||||||||||
T31610Y |
16.0 |
5.5 |
1.0 |
6.5 |
6.2 |
20.0 |
17.3 |
17.0 |
14.6 |
13.2 |
T31610YL |
||||||||||
T31910Y |
19.0 |
7.0 |
1.0 |
7.0 |
7.2 |
23.9 |
31.8 |
31.5 |
27.4 |
24.3 |
T31910YL |
||||||||||
