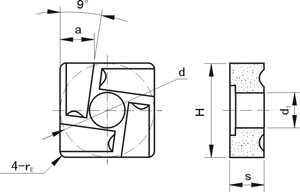

Sont Fixés Mécaniquement Inserts-Type 4D
 |
 |
Type |
Dimension(mm) |
Poids unitaire environ(g) |
||||||||
d |
s |
r |
a≈ |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
|
41305D |
13.0 |
4.5 |
0.5 |
4.4 |
5.2 |
13.0 |
9.2 |
9.0 |
7.9 |
7.0 |
41305DL |
||||||||||
41610D |
16.0 |
5.5 |
1.0 |
5.5 |
6.2 |
16.0 |
17.2 |
17.0 |
14.7 |
13.0 |
41610DL |
||||||||||
41910D |
19.0 |
7.0 |
1.0 |
6.8 |
7.2 |
19.0 |
31.0 |
30.6 |
26.4 |
23.5 |
41910DL |
||||||||||
