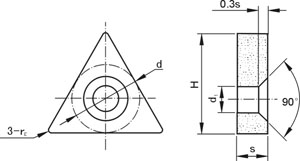

Sont Fixés Mécaniquement Inserts-Type 3N
 |
 |
Type |
Dimension(mm) |
Poids unitaire environ(g) |
|||||||
d |
s |
r |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
|
31005N |
10.0 |
4.5 |
0.5 |
4.2 |
14.5 |
7.7 |
7.5 |
6.6 |
5.9 |
31305N |
13.0 |
5.5 |
0.5 |
5.2 |
19.0 |
15.8 |
15.6 |
13.5 |
12.0 |
31605N |
16.0 |
7.0 |
0.5 |
6.2 |
23.5 |
30.9 |
30.1 |
26.9 |
23.9 |
31910N |
19.0 |
8.5 |
1.0 |
7.2 |
27.5 |
52.0 |
51.0 |
45.7 |
40.6 |
