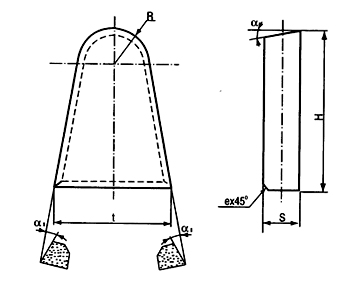

Tungsten Carbide Tips-Type M12
mm
Type | Dimension | Note | ||||||
t | H | S | R | α | α1 | e | ||
M1215 | 15.5 | 22.0 | 7.0 | 5.0 | 15o | 4o | 1.5 | G83556 |
M1222 | 22.0 | 22.5 | 7.5 | 9.5 | 11o | / | G81034 | |
M1230 | 30.0 | 35.0 | 12.0 | 8.0 | 8o | 8o | 1.0 | X7406 |
mm
Type | Dimension | Note | ||||||
t | H | S | R | α | α1 | e | ||
M1215 | 15.5 | 22.0 | 7.0 | 5.0 | 15o | 4o | 1.5 | G83556 |
M1222 | 22.0 | 22.5 | 7.5 | 9.5 | 11o | / | G81034 | |
M1230 | 30.0 | 35.0 | 12.0 | 8.0 | 8o | 8o | 1.0 | X7406 |
