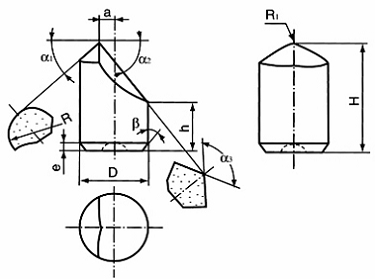

Tungsten Carbide Tips-Type M22
mm
Type | Dimension | Note | ||||||||||
D | H | R | R1 | h | a | α1 | α2 | α3 | β | e | ||
M2212 | 12.0 | 22.0 | 9.0 | 1.0 | 9.5 | 2.0 | 50o | 50o | 125o | 30o | 1.0 | G87036 |
M2212A | 12.5 | 25.0 | 15.5 | 2.3 | 45o | 55o | G08675 |
mm
Type | Dimension | Note | ||||||||||
D | H | R | R1 | h | a | α1 | α2 | α3 | β | e | ||
M2212 | 12.0 | 22.0 | 9.0 | 1.0 | 9.5 | 2.0 | 50o | 50o | 125o | 30o | 1.0 | G87036 |
M2212A | 12.5 | 25.0 | 15.5 | 2.3 | 45o | 55o | G08675 |
