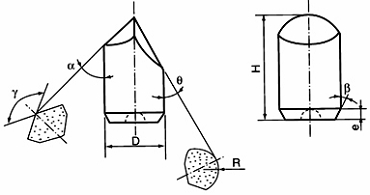

Tungsten Carbide Tips-Type M26
mm
Type | Dimension | Note | |||||||
D | H | R | α | β | γ | θ | e | ||
M2610 | 10.0 | 18.0 | 8.0 | 42o | 45o | 130o | 33o | 1.0 | G87035 |
M2610A | 20.0 | G83555 | |||||||
M2618 | 18.6 | 27.5 | 11.0 | 37o30' | 30o | 125o | 37o30' | 3.0 | G84247 |
mm
Type | Dimension | Note | |||||||
D | H | R | α | β | γ | θ | e | ||
M2610 | 10.0 | 18.0 | 8.0 | 42o | 45o | 130o | 33o | 1.0 | G87035 |
M2610A | 20.0 | G83555 | |||||||
M2618 | 18.6 | 27.5 | 11.0 | 37o30' | 30o | 125o | 37o30' | 3.0 | G84247 |
