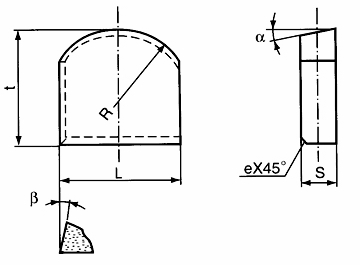

Tungsten Carbide Tips-Type M19
mm
Type | Dimension | Note | ||||||
L | t | S | R | α | β | e | ||
M1922 | 22.0 | 19.0 | 6.0 | 65.0 | 15o | 5o | 1.0 | G90108 |
M1928 | 28.0 | 22.0 | 10o | 10o | G81170 |
mm
Type | Dimension | Note | ||||||
L | t | S | R | α | β | e | ||
M1922 | 22.0 | 19.0 | 6.0 | 65.0 | 15o | 5o | 1.0 | G90108 |
M1928 | 28.0 | 22.0 | 10o | 10o | G81170 |
