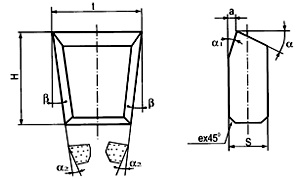

Tungsten Carbide Tips-Type M16
mm
Type | Dimension | Note | |||||||
H | t | S | a | α | α1 | β | e | ||
M1612 | 12.0 | 7.0 | 4.0 | 1.0 | 30o | 15o | 2o30' | 0.5 | G89358 |
M1616 | 16.0 | 15.0 | 6.0 | 2.0 | 37o | 19o | 15o | 1.0 | G08775 |
M1620 | 20.0 | 16.0 | 8.0 | 3.0 | 63o | 52o | / | G85169 |
mm
Type | Dimension | Note | |||||||
H | t | S | a | α | α1 | β | e | ||
M1612 | 12.0 | 7.0 | 4.0 | 1.0 | 30o | 15o | 2o30' | 0.5 | G89358 |
M1616 | 16.0 | 15.0 | 6.0 | 2.0 | 37o | 19o | 15o | 1.0 | G08775 |
M1620 | 20.0 | 16.0 | 8.0 | 3.0 | 63o | 52o | / | G85169 |
