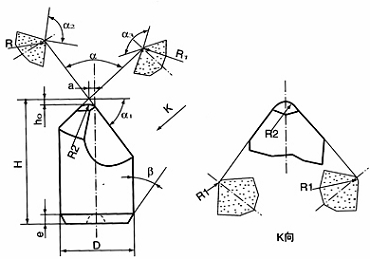

Tungsten Carbide Tips-Type M25
mm
Type | Dimension | Note | |||||||||||
D | H | R | R1 | h0 | α | α1 | α2 | α3 | β | a | e | ||
M25-86002 | 12.5 | 25.0 | 1.5 | 3.0 | 1.0 | 80o | 35o | 110o | 120o | 45o | 1.0 | 1.0 | G86278 |
M2513 | 13.0 | 24.0 | / | 55o | G85034 | ||||||||
M2513A | 2.0 | 5.0 | 1.0 | 60o | 100o | 90o | 60o | 0.5 | 6.0 | G86277 | |||
M2513B | 1.1 | 55o | 62o30' | / | G90055 | ||||||||
M2514 | 14.0 | 1.0 | 60o | 60o | 0.5 | G85035 |
