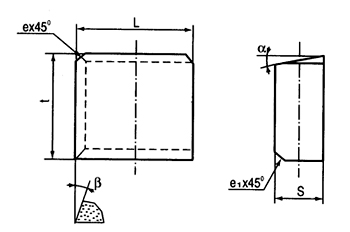

Tungsten Carbide Tips-Type M13
mm
Type | Dimension | Note | ||||||
L | t | S | α | β | e | e1 | ||
M1314 | 14.0 | 16.0 | 6.0 | 15o | / | / | 1.0 | G90109 |
M13-98001 | 15.0 | 10.0 | 3.0 | 15o | / | / | MP-98001 | |
M1317 | 17.5 | 15.5 | 6.0 | 10o | 10o | 1.0 | 1.0 | G81168 |
M1319 | 19.0 | 16.0 | 8o | 1.0 | G81169 |
