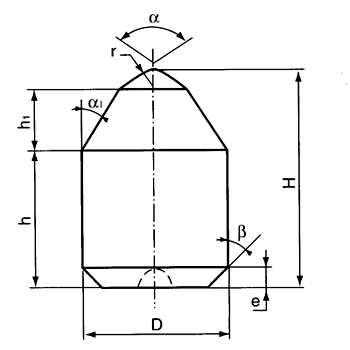

Tungsten Carbide Tips-Type M20
mm
Type | Dimension | Note | ||||||||
D | H | h | h1 | r | α | α1 | β | e | ||
M20-97001 | 14.8 | 20.5 | 12.5 | 4.0 | 2.0 | 90o | 35o | 45o | 1.5 | G97580 |
M2018 | 18.0 | 30.0 | 20.0 | 6.0 | 1.5 | 80o | 30o | 1.0 | X7404 | |
M20-98002 | 35.0 | 28.0 | 4.0 | 2.5 | 110o | 45o | 62o30' | 3.5 | G98140 |
