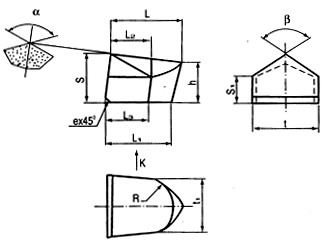

Tungsten Carbide Tips-Type M18
mm
Type | Dimension | Note | ||||||||||||
L | L1 | L2 | L3 | t | t1 | S | S1 | R | h | α | β | e | ||
M1820 | 22.0 | 22.0 | 13.0 | 12.5 | 22.0 | 20.0 | 16.7 | 9.0 | 25.0 | 14.0 | 128o | 110o | 1.0 | G81033 |
