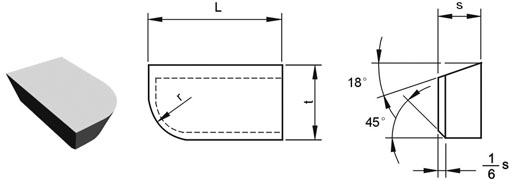

Weld Tips-Type A
Type | Dimension (mm) | |||
L | t | s | r | |
A5 | 5.0 | 3.0 | 2.0 | 2.0 |
A6 | 6.0 | 4.0 | 2.5 | 2.5 |
A8 | 8.0 | 5.0 | 3.0 | 3.0 |
A10 | 10.0 | 6.0 | 4.0 | 4.0 |
A12 | 12.0 | 8.0 | 5.0 | 5.0 |
A16 | 16.0 | 10.0 | 6.0 | 6.0 |
A20 | 20.0 | 12.0 | 7.0 | 7.0 |
A25 | 25.0 | 14.0 | 8.0 | 8.0 |
A32 | 32.0 | 18.0 | 10.0 | 10.0 |
A40 | 40.0 | 22.0 | 12.0 | 12.0 |
A50 | 50.0 | 25.0 | 14.0 | 14.0 |
