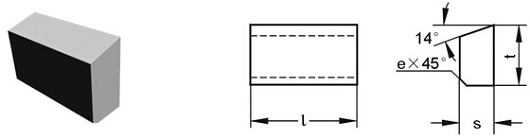

Weld Tips-Type A1
Type |
Dimension(mm) |
Approx Unit Weight(g) |
l |
t |
s |
e |
YG6 |
YG8 |
YT5 |
YT14 |
A106 |
6.0 |
5.0 |
2.5 |
/ |
1.1 |
1.1 |
1.0 |
0.9 |
A108 |
8.0 |
7.0 |
3.0 |
/ |
2.6 |
2.5 |
2.1 |
1.9 |
A110 |
10.0 |
6.0 |
3.5 |
0.8 |
2.9 |
2.8 |
2.4 |
2.2 |
A112 |
12.0 |
10.0 |
4.0 |
0.8 |
6.8 |
6.6 |
5.7 |
5.2 |
A114 |
14.0 |
12.0 |
4.5 |
0.8 |
10.7 |
10.5 |
8.9 |
8.2 |
A116 |
16.0 |
10.0 |
5.5 |
0.8 |
12.3 |
12.0 |
10.5 |
9.8 |
A118 |
18.0 |
12.0 |
7.0 |
0.8 |
21.3 |
20.8 |
17.5 |
16.3 |
A118A |
18.0 |
16.0 |
6.0 |
0.8 |
24.7 |
24.3 |
21.0 |
19.7 |
A120 |
20.0 |
12.0 |
7.0 |
0.8 |
23.2 |
22.8 |
20.0 |
18.6 |
A122 |
22.0 |
15.0 |
8.5 |
0.8 |
39.2 |
38.5 |
33.0 |
30.6 |
A122A |
22.0 |
18.0 |
7.0 |
0.8 |
39.2 |
38.5 |
32.8 |
30.5 |
A125 |
25.0 |
15.0 |
8.5 |
0.8 |
44.5 |
43.7 |
36.5 |
34.0 |
A125A |
25.0 |
20.0 |
10.0 |
0.8 |
71.0 |
69.8 |
58.0 |
53.8 |
A130 |
30.0 |
16.0 |
10.0 |
0.8 |
66.4 |
65.3 |
56.5 |
51.7 |
A136 |
36.0 |
20.0 |
10.0 |
0.8 |
98.2 |
96.8 |
81.0 |
75.2 |
A140 |
40.0 |
18.0 |
10.5 |
1.2 |
105.6 |
103.8 |
88.0 |
81.7 |
A150 |
50.0 |
20.0 |
10.5 |
1.2 |
149.0 |
146.0 |
125.0 |
116.0 |
A160 |
60.0 |
22.0 |
10.5 |
1.2 |
197.0 |
193.0 |
168.0 |
156.0 |
A170 |
70.0 |
25.0 |
12.0 |
1.2 |
298.0 |
293.0 |
257.0 |
239.0 |
