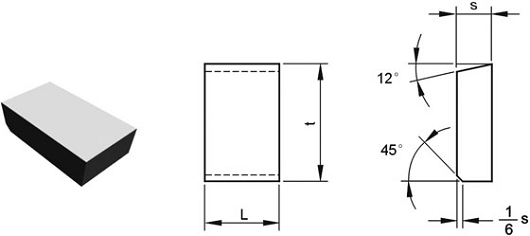

Welding pieces - Type K
Type | Dimension (mm) | ||
L | t | s | |
K2 | 2.5 | 15.0 | 4.0 |
K3 | 3.5 | 15.0 | 4.0 |
K4 | 4.5 | 15.0 | 4.0 |
K5 | 5.5 | 15.0 | 4.0 |
K6 | 6.5 | 15.0 | 4.0 |
K7 | 7.5 | 15.0 | 4.0 |
K8 | 8.5 | 20.0 | 6.0 |
K9 | 9.5 | 20.0 | 6.0 |
K10 | 10.5 | 20.0 | 6.0 |
K12 | 12.5 | 20.0 | 6.0 |
