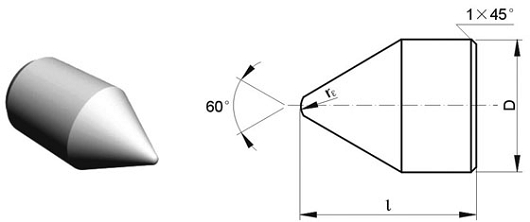

Weld Tips-Type F1
Type | Dimension(mm) | Approx Unit Weight(g) | |||||
D | l | rε | YG6 | YG8 | YT5 | YT14 | |
F108 | 8.0 | 15.0 | 1.0 | 8.0 | 7.8 | 7.4 | 6.6 |
F112 | 12.0 | 20.0 | 1.5 | 22.5 | 22.0 | 19.4 | 17.2 |
F115 | 15.0 | 24.0 | 1.5 | 41.0 | 40.2 | 35.3 | 31.3 |
F118 | 18.0 | 28.0 | 2.0 | 68.5 | 67.1 | 58.9 | 52.3 |
F124 | 24.0 | 35.0 | 2.0 | 152.0 | 149.0 | 130.7 | 116.0 |
F130 | 30.0 | 40.0 | 2.5 | 255.0 | 250.0 | 219.3 | 194.7 |
F136 | 36.0 | 50.0 | 2.5 | 470.0 | 460.6 | 404.2 | 358.8 |
F140 | 40.0 | 60.0 | 3.0 | 760.0 | 744.8 | 653.6 | 580.1 |
