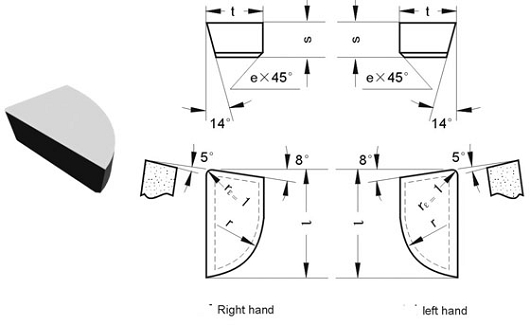

Weld Tips-Type A3
Type | Dimension(mm) | Approx Unit Weight(g) | ||||||||
Right | Left | l | t | s | r | e | YG6 | YG8 | YT5 | YT14 |
A310 | / | 10.0 | 6.0 | 3.0 | 6.0 | / | 2.4 | 2.3 | 2.0 | 1.8 |
A312 | A312Z | 12.0 | 7.0 | 4.0 | 7.0 | 0.8 | 3.7 | 3.7 | 3.2 | 2.9 |
A315 | A315Z | 15.0 | 9.0 | 6.0 | 9.0 | 0.8 | 9.3 | 9.1 | 7.6 | 7.1 |
A320 | A320Z | 20.0 | 11.0 | 7.0 | 11.0 | 0.8 | 17.5 | 17.2 | 14.8 | 13.5 |
A325 | A325Z | 25.0 | 14.0 | 8.0 | 14.0 | 0.8 | 32.0 | 31.5 | 27.0 | 25.0 |
A330 | A330Z | 30.0 | 16.0 | 9.5 | 16.0 | 0.8 | 52.0 | 51.0 | 45.5 | 42.3 |
A340 | A340Z | 40.0 | 18.0 | 10.5 | 18.0 | 1.2 | 89.2 | 87.5 | 80.0 | 74.5 |
