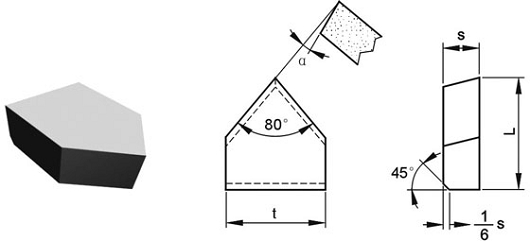

Weld Tips-Type E
Type | Dimension (mm) | |||
L | t | s | α | |
E4 | 10.0 | 4.0 | 2.5 | / |
E5 | 12.0 | 5.0 | 3.0 | / |
E6 | 14.0 | 6.0 | 3.5 | / |
E8 | 16.0 | 8.0 | 4.0 | 9° |
E10 | 18.0 | 10.0 | 5.0 | 9° |
E12 | 20.0 | 12.0 | 6.0 | 9° |
E16 | 22.0 | 16.0 | 7.0 | 9° |
E20 | 25.0 | 20.0 | 8.0 | 9° |
E25 | 28.0 | 25.0 | 9.0 | 9° |
E32 | 32.0 | 32.0 | 10.0 | 9° |
