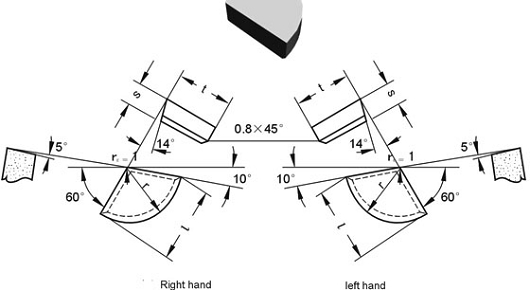

Weld Tips-Type A6
Type | Dimension(mm) | Approx Unit Weight(g) | |||||||
Right | Left | l | t | s | r | YG6 | YG8 | YT5 | YT14 |
A612 | A612Z | 12.0 | 8.0 | 3.0 | 8.0 | 3.2 | 3.1 | 2.8 | 2.5 |
A615 | A615Z | 15.0 | 10.0 | 4.0 | 10.0 | 6.1 | 6.0 | 5.3 | 4.7 |
A618 | A618Z | 18.0 | 12.0 | 4.5 | 12.0 | 10.0 | 9.8 | 8.6 | 7.7 |
