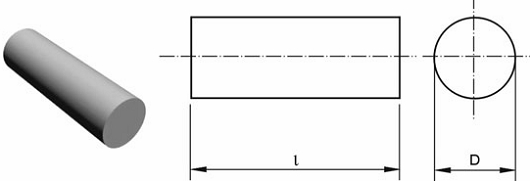

Weld Tips-Type F3
Type | Dimension(mm) | Approx Unit Weight(g) | ||||
D | l | YG6 | YG8 | YT5 | YT14 | |
F303 | 3.5 | 10.0 | 1.1 | 1.1 | 14.0 | 0.9 |
F304 | 4.5 | 12.0 | 3.0 | 2.9 | 2.4 | 2.1 |
F305 | 5.5 | 15.0 | 5.6 | 5.5 | 4.8 | 4.3 |
F306 | 6.5 | 18.0 | 9.2 | 9.0 | 7.9 | 7.0 |
F307 | 7.5 | 20.0 | 13.8 | 13.6 | 11.9 | 10.5 |
F308 | 8.5 | 22.0 | 20.0 | 19.7 | 17.2 | 15.3 |
