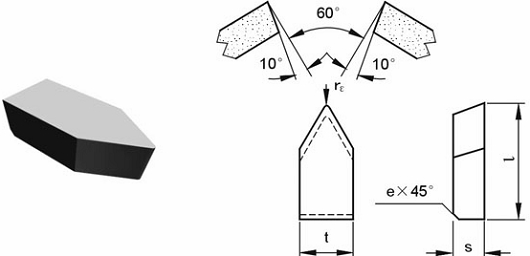

Weld Tips-Type C1
Type |
Dimension(mm) |
Approx Unit Weight(g) |
|||||||
l |
t |
s |
rε |
e |
YG6 |
YG8 |
YT5 |
YT14 |
|
C110 |
10.0 |
4.0 |
3.0 |
0.5 |
/ |
1.5 |
1.5 |
1.3 |
1.2 |
C116 |
16.0 |
6.0 |
4.0 |
0.5 |
0.8 |
4.8 |
4.7 |
4.0 |
3.7 |
C120 |
20.0 |
8.0 |
5.0 |
0.5 |
0.8 |
10.1 |
9.9 |
8.2 |
7.7 |
C122 |
22.0 |
10.0 |
6.0 |
0.5 |
0.8 |
15.6 |
15.3 |
13.7 |
12.1 |
C125 |
25.0 |
12.0 |
7.0 |
0.8 |
0.8 |
25.0 |
24.5 |
21.3 |
19.1 |
