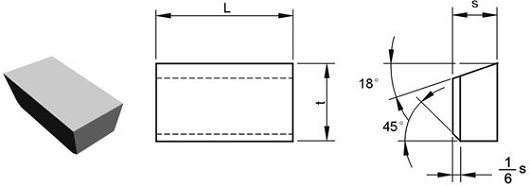

Weld Tips-Type C
Type | Dimension (mm) | ||
L | t | s | |
C5 | 5.0 | 3.0 | 2.0 |
C6 | 6.0 | 4.0 | 2.5 |
C8 | 8.0 | 5.0 | 3.0 |
C10 | 10.0 | 6.0 | 4.0 |
C12 | 12.0 | 8.0 | 5.0 |
C16 | 16.0 | 10.0 | 6.0 |
C20 | 20.0 | 12.0 | 7.0 |
C25 | 25.0 | 14.0 | 8.0 |
C32 | 32.0 | 18.0 | 10.0 |
C40 | 40.0 | 22.0 | 12.0 |
C50 | 50.0 | 25.0 | 14.0 |
