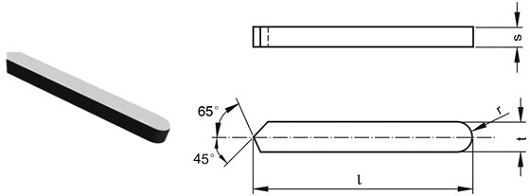

Weld Tips-Type C5
Type | Dimension(mm) | Approx Unit Weight(g) | ||||||
l | t | s | r | YG6 | YG8 | YT5 | YT14 | |
C539 | 39.0 | 4.0 | 4.0 | 2.0 | 9.0 | 8.7 | 8.4 | 7.1 |
C545 | 45.0 | 6.0 | 4.0 | 3.0 | 16.0 | 15.7 | 13.7 | 12.1 |
Type | Dimension(mm) | Approx Unit Weight(g) | ||||||
l | t | s | r | YG6 | YG8 | YT5 | YT14 | |
C539 | 39.0 | 4.0 | 4.0 | 2.0 | 9.0 | 8.7 | 8.4 | 7.1 |
C545 | 45.0 | 6.0 | 4.0 | 3.0 | 16.0 | 15.7 | 13.7 | 12.1 |
