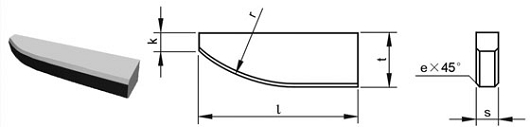

Weld Tips-Type E3
Type |
Dimension(mm) |
Approx Unit Weight(g) |
l |
t |
s |
k |
r |
e |
YG6 |
YG8 |
YT5 |
YT14 |
E312 |
12.0 |
6.0 |
1.5 |
1.5 |
20.0 |
/ |
1.3 |
1.3 |
1.0 |
0.9 |
E315 |
15.0 |
3.5 |
2.0 |
1.5 |
20.0 |
/ |
1.4 |
1.4 |
1.2 |
1.1 |
E315A |
15.0 |
7.0 |
2.0 |
2.5 |
25.0 |
/ |
2.4 |
2.3 |
2.1 |
2.0 |
E320 |
20.0 |
4.5 |
2.5 |
2.5 |
25.0 |
/ |
2.9 |
2.8 |
2.7 |
2.5 |
E320A |
20.0 |
6.0 |
3.5 |
2.5 |
25.0 |
0.5 |
5.3 |
5.3 |
4.2 |
3.9 |
E320B |
20.0 |
9.0 |
2.5 |
3.5 |
30.0 |
0.5 |
5.6 |
5.6 |
4.5 |
4.1 |
E325 |
25.0 |
8.0 |
3.0 |
3.5 |
30.0 |
0.5 |
7.1 |
7.1 |
6.9 |
6.2 |
E325A |
25.0 |
15.0 |
3.0 |
3.5 |
30.0 |
0.5 |
13.1 |
12.9 |
11.2 |
10.0 |
E330 |
30.0 |
10.0 |
4.0 |
3.5 |
30.0 |
0.5 |
15.3 |
15.0 |
12.9 |
11.7 |
E330A |
30.0 |
21.0 |
4.0 |
3.5 |
30.0 |
0.5 |
29.5 |
29.2 |
24.5 |
21.9 |
E335A |
35.0 |
10.0 |
5.0 |
3.5 |
30.0 |
0.8 |
22.9 |
22.5 |
19.5 |
17.6 |
E340 |
40.0 |
12.0 |
5.0 |
3.5 |
30.0 |
0.8 |
26.1 |
26.8 |
22.0 |
20.2 |
E345 |
45.0 |
12.0 |
6.0 |
3.5 |
30.0 |
0.8 |
41.6 |
41.0 |
35.0 |
31.6 |
